Honda Engines, HONDA 340CC OHV ELEC START, Engine Displacement 389 cc, Engine Type GX Series OHV Commercial-duty, Shaft Diameter 1 in, Model# GX340UT2QNE2

127.98

Qty

Product was out of stock

Description

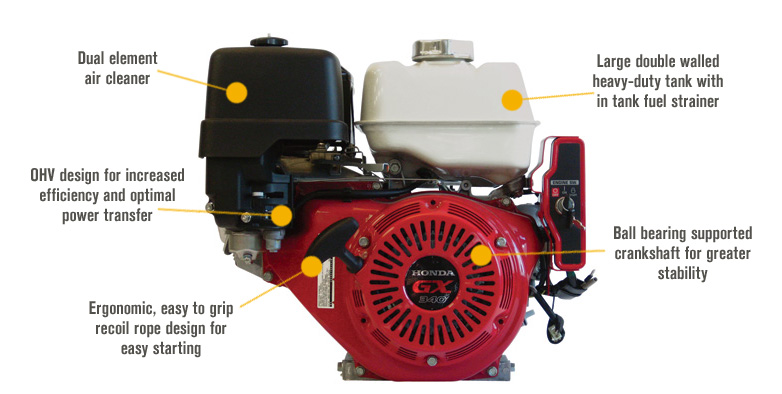

Model GX340UT2QNE2; Honda 389cc, 10.7 HP air-cooled, 4-stroke engine with 1in. dia. x 3 31/64in.L horizontal shaft
OHV overhead valve design
Electronic ignition with electric start with key switch/recoil backup featuring automatic decompression for easy starting; 10 Amp charge
Flange mount bolt circle 6 1/2in.
Mounting base dim. 7.7in.L x 3.39in.-4.06in. W (approx.)
Cast iron sleeve provides durability
Ideal for use with pressure washers, compressors, go-karts, log splitters and chipper/shredders
Key switch; Oil Alert®
Heavy-duty ball bearing supported crankshaft
Double walled heavy-duty tank with in-tank fuel strainer
Battery cables not included
Not for sale in CA

Attribute	Specification
item#	60109
Brand	Honda Engines
Manufacture's Warranty	3 year limited warranty
Ship Weight	88.3 LB
Engine Displacement	389 cc
Engine Type	GX Series OHV Commercial-duty
Shaft Diameter	1 in
Shaft Length	3.48 in
Start Type	Electric and Recoil
Shaft Keyway	0.25 in
Net Torque	19.5 ft-lbs.
Crankshaft	Q-type
PTO Height	5.25 in
Cylinders (qty.)	1
Cylinder Bore	Cast Iron
Net Power Output	10.7 HP
Compression Ratio	8.2:1
Fuel Tank	Yes
Fuel Tank Capacity	6.4 qt

Attribute	Specification
Oil Capacity	1.16 qt
Low Oil Shutdown	Yes
Low Oil Alert	Yes
Shaft Rotation (From PTO Shaft Side)	Counter Clockwise
Governor System	Centrifugal Mechanical
Ignition System	Electronic
Carburetor	Float, External Vent
Lubrication System	Splash
Auto Compression Release	Yes
Cooling System	Air
Bore	3.2 in
Stroke	2.5 in
Air Cleaner Type	Dual Element
Choke Control	Manual
Throttle Control	Manual
Fuel Filter	Yes
Charging System Amps	10
Muffler Included	Yes
