Genuine Honda Performance
Honda's Experience Counts
There are many reasons to insist on genuine Honda engines — reasons like less down time, lower costs of ownership and better performance. As the world's largest engine manufacturer, Honda offers more engine experience than anyone, experience born on racetracks and roadways around the globe. Honda has a well-earned reputation for engine quality and performance. When you choose a Honda engine, or a product powered by Honda, you know what you're getting: an engine you can count on, now and in the future.
Commercial-Grade Honda GX Series
The Honda GX Series OHV commercial-grade engine is designed to perform in the most demanding commercial applications and has set the industry standard for reliability and durability. It's the preferred engine for construction equipment, pressure washers, compressors, go-karts, log splitters and more.
Superior Performance
Better fuel efficiency. Higher power output. Quieter performance. Easier use. No matter how you define superior engine performance, Honda engines set the standard, with best-in-class engineering and technology.
Legendary Easy Starting
Honda engines are renowned for being consistently easy to start. With a unique automatic mechanical decompression system, heavy-duty recoil ropes and advanced variable ignition timing, Honda engines are designed with quick, easy starts in mind.
Environmental Focus
Honda is committed to producing one engine for use in all 50 states. Honda engines meet the new, more stringent CARB emission requirements, and will be ready for the future lower EPA and CARB standards as they are introduced. Additionally, Honda engines meet CARB exhaust emission requirements without the use of a catalytic converter.

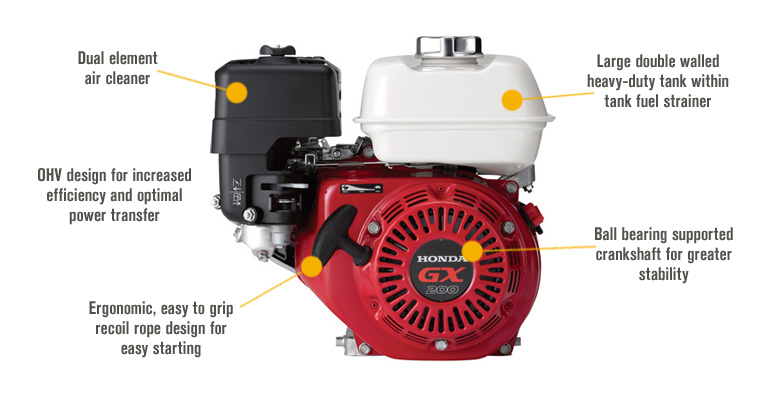

- Precision camshaft design for precise valve timing, optimal valve overlap and better fuel economy
- OHV design for increased efficiency and optimal power transfer
- High compression ratio for better fuel efficiency
- Low vibration from precision-engineered components
- Ball bearing-supported crankshaft for greater stability
- Large capacity, multi-chamber exhaust system for a low noise level
- Sophisticated air intake system
- Oil Alert for extra engine protection
- Carburetor filter and chamber coating help protect against fuel impurities
- Cast iron cylinder sleeve
- Dual element air filter
- Simple throttle control
- Double walled heavy-duty 3.3-qt. tank with in-tank fuel strainer
- Large automotive-style fuel cap for easy filling
- Dual oil fills and drains for quick oil changes
- Easily accessible spark plug
- Ergonomic recoil design for easy starts
- Automatic decompression for easy starting
- 50-state compliant engine
- CARB and EPA certified
| Attribute | Specification |
|---|---|
| item# |
6067 |
| Brand |
Honda Engines |
| Manufacture's Warranty |
3 year limited warranty |
| Ship Weight |
37.75 LB |
| Engine Displacement |
196 cc |
| Engine Type |
GX Series OHV Commercial-duty |
| Shaft Diameter |
3/4 in |
| Shaft Length |
2.43 in |
| Start Type |
Recoil |
| Shaft Keyway |
0.18 in |
| Net Torque |
9.1 ft-lbs. |
| Crankshaft |
Q-type |
| PTO Height |
4.17 in |
| Cylinders (qty.) |
1 |
| Cylinder Bore |
Cast Iron |
| Net Power Output |
5.5 HP |
| Compression Ratio |
8.5:1 |
| Fuel Tank |
Yes |
| Attribute | Specification |
|---|---|
| Fuel Tank Capacity |
3.3 qt |
| Oil Capacity |
0.63 qt |
| Low Oil Shutdown |
Yes |
| Low Oil Alert |
Yes |
| Shaft Rotation (From PTO Shaft Side) |
Counter Clockwise |
| Governor System |
Centrifugal Mechanical |
| Ignition System |
Electronic |
| Carburetor |
Float |
| Lubrication System |
Splash |
| Auto Compression Release |
Yes |
| Cooling System |
Air |
| Bore |
2.7 in |
| Stroke |
2.1 in |
| Air Cleaner Type |
Dual Element |
| Choke Control |
Manual |
| Throttle Control |
Remote |
| Muffler Included |
Yes |
