Honda Horizontal OHV Engine, 389cc, GX Series, 1in. x 3 31/64in. Shaft, Model# GX390UT1QAA2

126.98
        SPECIAL OFFER

          Please select all product options

          Product was out of stock

          Description

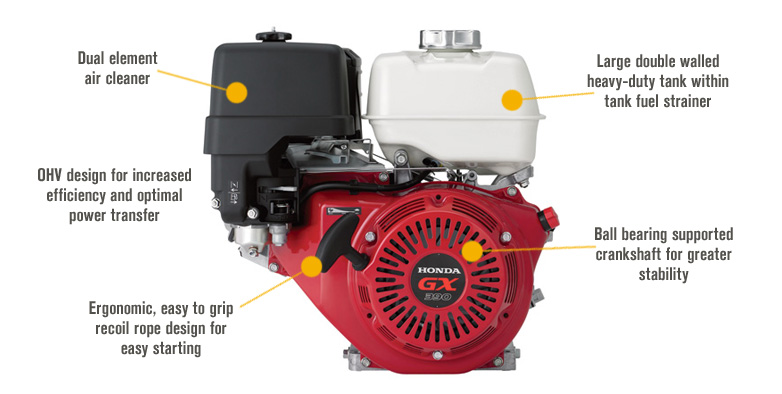

          • Model GX390UT1QAA2; 389cc, 11.7 HP air-cooled 4-stroke commercial-grade engine with 1in. dia. x 3 31/64in. L horizontal shaft
          • OHV overhead valve design for increased efficiency and optimal power transfer
          • Electronic ignition system with automatic decompression and heavy-duty recoil starter for quick and easy starts
          • 5in., 6 1/2in. bolt circle; Mounting base: 7 11/16in.L x 3 25/64in. to 4 1/16in.W (approx.)
          • Cast iron cylinder for exceptional durability
          • Preferred engine for construction equipment including pressure washers, compressors, log splitters and chipper/shredders
          • Heavy-duty ball bearing supported crankshaft for greater stability
          • Large double walled heavy-duty tank with in tank fuel strainer
          • Large, easy to fill automotive-style fuel cap
          • Auto idle/throttle control for extended engine life, improved fuel economy and reduced engine noise
          • Precision camshaft for better fuel economy with precise valve timing and optimal valve overlap
          • Low noise level thanks to a large capacity, multi-chambered exhaust system
          • Improved camshaft and muffler reduce engine noise by up to 5dB
          • Oil Alert protects engine
          • Dual element air filter
          • Easy to use throttle control
          • Dual oil drains and fills for quick oil changes
          • Easily accessible spark plug
          • Not for sale in CA
          Attribute Specification

          item#

          		 6066

          Brand

          		 Honda Engines

          Manufacture's Warranty

          		 3 year limited warranty

          Ship Weight

          		 77.4 LB

          Engine Displacement

          		 389 cc

          Engine Type

          		 GX Series OHV Commercial-duty

          Shaft Diameter

          		 1 in

          Shaft Length

          		 3.48 in

          Start Type

          		 Recoil

          Shaft Keyway

          		 0.25 in

          Net Torque

          		 19.5 ft-lbs.

          Crankshaft

          		 Q-type

          PTO Height

          		 5.25 in

          Cylinders (qty.)

          		 1

          Cylinder Bore

          		 Cast Iron

          Net Power Output

          		 11.7 HP

          Compression Ratio

          		 8.2:1

          Fuel Tank

          		 Yes
          Attribute Specification

          Fuel Tank Capacity

          		 6.4 qt

          Oil Capacity

          		 1.16 qt

          Low Oil Shutdown

          		 Yes

          Low Oil Alert

          		 Yes

          Shaft Rotation (From PTO Shaft Side)

          		 Counter Clockwise

          Governor System

          		 Centrifugal Mechanical

          Ignition System

          		 Electronic

          Carburetor

          		 Float, External Vent

          Lubrication System

          		 Splash

          Auto Compression Release

          		 Yes

          Cooling System

          		 Air

          Bore

          		 3.5 in

          Stroke

          		 2.5 in

          Air Cleaner Type

          		 Dual Element

          Choke Control

          		 Manual

          Throttle Control

          		 Remote

          Fuel Filter

          		 Yes

          Muffler Included

          		 Yes
